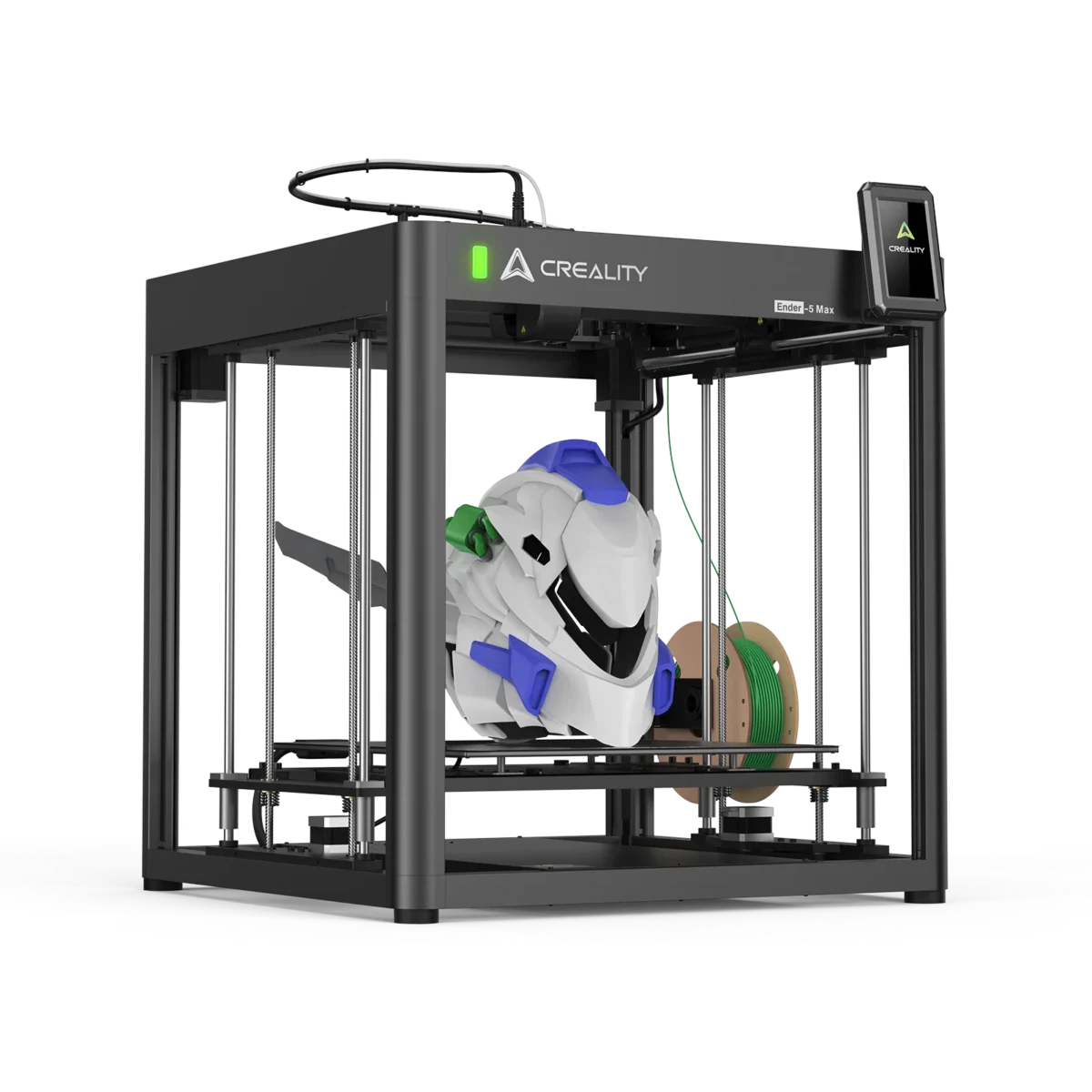

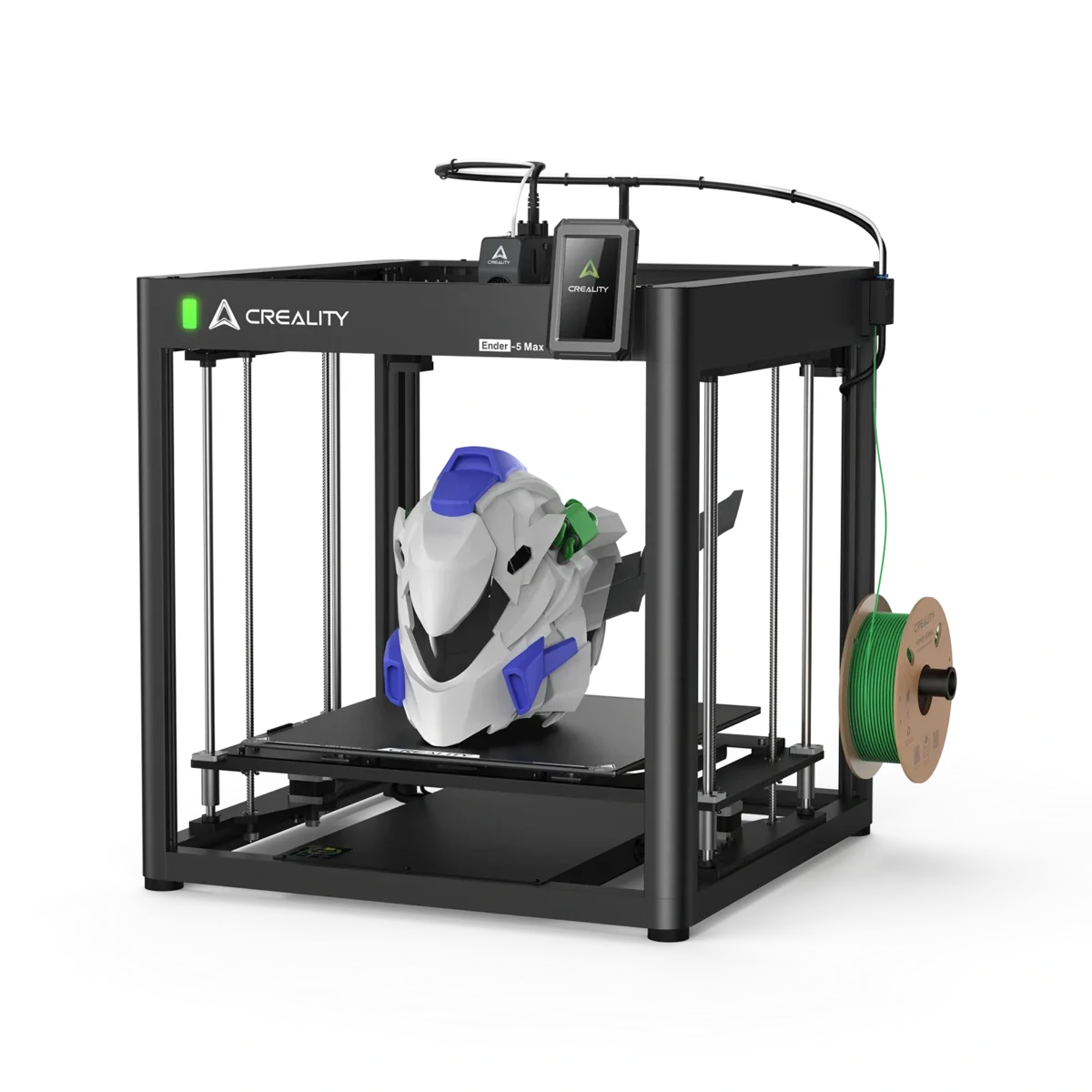

Creality Ender-5 Max

Professional-Grade Precision and Build Quality

The Creality Ender-5 Max 3D Printer is designed for engineers, designers, and professionals who require uncompromising accuracy and strength. Its rigid all-metal frame provides exceptional stability during long print sessions, while the dual Z-axis motors deliver consistent motion across large models. With a build volume of 400×400×400 mm, it supports both full-scale models and batch production with precision layer bonding.

• Build volume: 400×400×400 mm

• Frame: Die-cast aluminum alloy construction

• Z-axis: Dual motors with dual lead screws

• Leveling: 64-point fully automatic bed leveling system

• Linear motion: X-axis precision linear rail for smooth movement

The result is high-quality prints with accurate dimensions and smooth surfaces from the first layer to the last.

High-Speed, High-Performance Printing

The Ender-5 Max utilizes a CoreXY motion system and powerful 42-76 stepper motors to achieve printing speeds of up to 700 mm/s with controlled precision. Its direct-drive extruder, equipped with dual tempered gears, maintains reliable filament feeding even under continuous operation.

• Printing speed: Up to 700 mm/s

• Extruder type: Direct drive with dual tempered gears

• Tested durability: Over 500 hours of continuous extrusion

• Heatbed: 1000W aluminum alloy heater, up to 100°C in 200 seconds

• Build plate: Flexible epoxy surface for easy print removal

Compatible with a wide range of materials, including PLA, PETG, ABS, ASA, TPU, and PA, this printer ensures professional results across diverse printing applications.

Intelligent Control, Safety, and Connectivity

Engineered for performance and reliability, the Ender-5 Max supports multi-printer management and smart connectivity features for streamlined workflow control. Its adaptive voltage system and dual safety fuses provide stable performance under global power standards.

• Voltage input: 100V–240V, auto-adaptive

• Interface: 4.3″ color touch screen

• File transfer: USB drive or Wi-Fi connection

• Cloud compatibility: Creality Cloud app for remote management

• Lighting: Built-in illumination with tri-color status indicator

• Sensors: Filament runout detection and power-loss recovery

• Operating temperature: 5–40°C

• Supported filaments: PLA, PETG, TPU95A, ABS, ASA, PLA-CF, PA, PLA-Silk

• Slicing software: Creality Print 5.1+ (STL, OBJ, 3MF formats)

With its intelligent automation, safety enhancements, and global compatibility, the Creality Ender-5 Max is built to meet the demands of advanced users and production environments.
