ELEGOO Orange Storm Giga
Gigantic Build Volume for Limitless Creations
The ELEGOO Orange Storm Giga redefines what’s possible in large-scale 3D printing. With a massive build volume of 800 × 800 × 1000 mm, this industrial-grade FDM printer eliminates the need to split oversized models into smaller sections. From intricate architectural prototypes to life-sized cosplay armor and large mechanical parts, the Orange Storm Giga delivers seamless prints with unmatched scale and precision.
Intelligent Performance and High-Speed Printing
Powered by a 64-bit 1.5G quad-core processor, the Orange Storm Giga achieves speeds of up to 300 mm/s, delivering professional-grade results in a fraction of the time. Its auto-leveling system with a high-precision non-contact sensor collects 100-point (10 × 10) platform data, ensuring a perfectly leveled surface for flawless printing accuracy. Combined with a dual-gear direct extruder, titanium heat break, and brass nozzle capable of reaching 300 °C, this printer guarantees smooth filament flow and exceptional output across a wide range of materials.
Advanced Engineering and Smart Features
The Orange Storm Giga is designed with four independent 410 × 410 mm PEI magnetic heated platforms, capable of reaching 100 °C in just 17 minutes, ensuring optimal adhesion and energy efficiency. With support for multi-nozzle printing, users can add up to four printheads for simultaneous multi-color or multi-model output. A dual-sided cooling system, resume printing function, and filament detection sensors keep every project running smoothly without interruptions. The 10.1-inch detachable HD touchscreen, multi-language interface, and robust cable management system make operation intuitive and reliable, while the reinforced aluminum frame ensures long-term stability and durability.

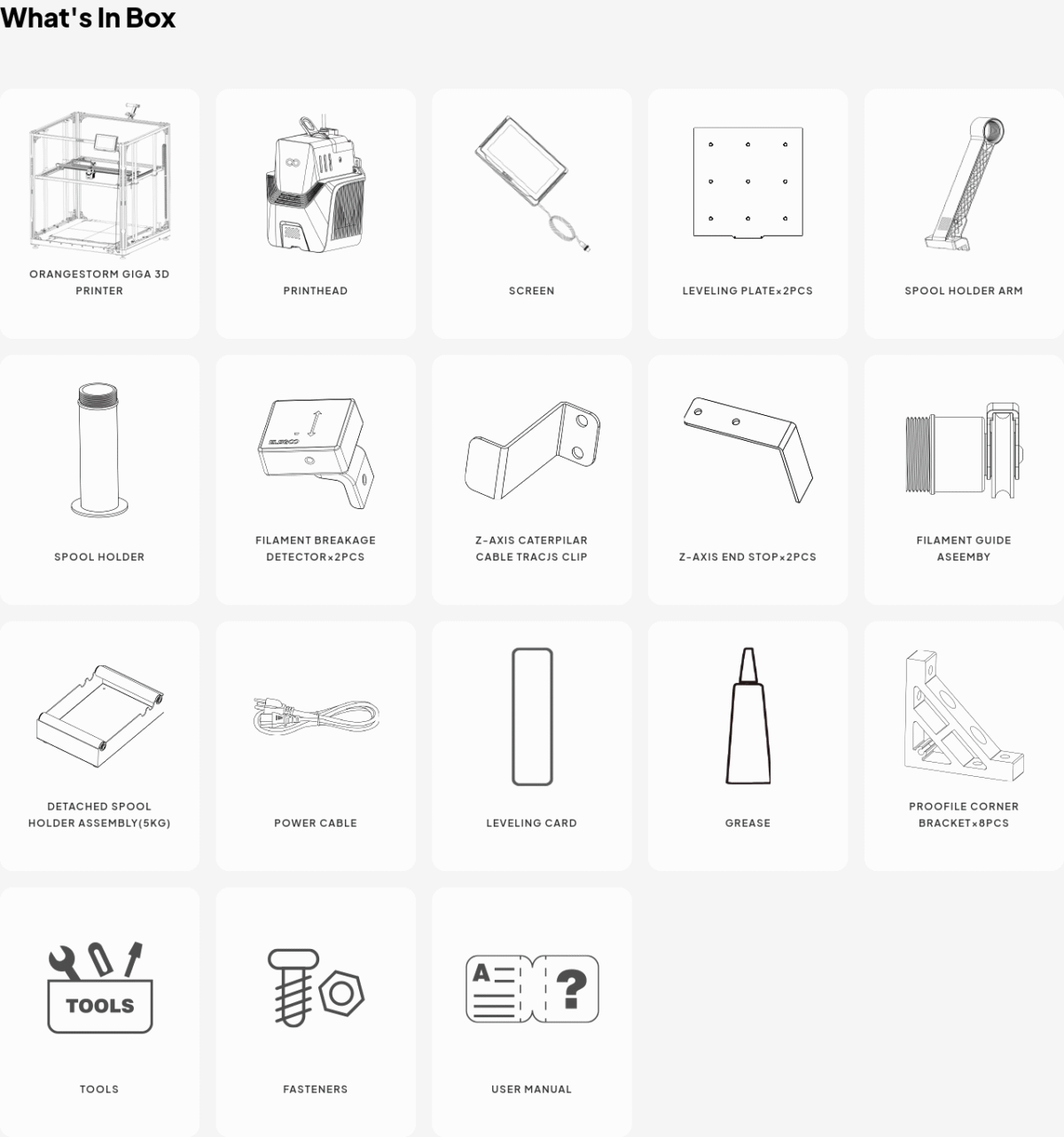

Combo
Specification
| Product Model | OrangeStorm Giga |
| Printing Technology | FDM (Fused Deposition Modeling) |
| Voltage | 100–120V / 220–240V |
| File Transfer Method | USB, LAN, WIFI |
| File Format | STL, OBJ |
| UI Language | English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
| Build Volume | 800 x 800 x 1000 mm³ |
| Printing Platform Size (PEI Area) | 820 x 820 mm² (4 independent 410 x 410 mm² PEI plates) |
| Machine Size | 1224 x 1164 x 1425 mm³ |
| Package Size | Bottom + XY Axis Components: 1350 x 1215 x 420 mm³ Two Z-Axis Components: 1350 x 1215 x 350 mm³ |
| Maximum Size for Machine Activity | 1224 x 1520 x 1570 mm |
| Max. Nozzle Temperature | 300°C |
| Max. Hot Bed Temperature | 100°C (ambient temperature: 25°C) |
| Filament Compatibility | PLA / PETG / TPU |
| Net Weight | 104 kg |
| Gross Weight | 145 kg |
| Resume Printing | Yes |
| Filament Detection | Yes |
| Max Speed of Tool Head | 300 mm/s |
| Max Acceleration of Tool Head | 5,000 mm/s² |
