Hot
Resin that match the color of the teeth
According
to feedback from dental clinics and laboratories, the color of crowns
3D printed with 3164 resin is true to the aesthetics of the teeth; the
glossy finish is good.
Fast curing, printing in 2 hours
The
high quality resin material, combined with digital printing technology,
makes the process of collaboration between dentist and patient more
economical and faster.
Oral safety certified
3164
temporary crown resin passed the ISO 10993 biocompatibility test for
cytotoxicity. Additional tests will continue to be conducted to ensure
the safety of our products.
Chemical resistance
The
raw materials are sourced from the United States and Japan; they have
excellent mechanical properties: good elasticity, strong resistance to
deformation, and strong resistance to oral corrosion, so patients can
wear them with confidence.
Temporary Crown Application
How to Make and Use 3D Printed Temporary Crown Resin >> watch here
The application process of 3D printing temporary dental crowns using resin involves the following steps:
- Scanning the patient’s teeth and gums using a 3D scanner or dental impressions.
- Designing a 3D model of the tooth using CAD/CAM software based on the scans.
- Slicing the 3D model into layers and preparing it for printing.
- Printing the model layer by layer using dental crown resin.
- Washing and curing the printed model to remove excess resin and harden it.
- Polishing the crown to give it a smooth texture.
- Applying a layer of glaze or enamel to the crown for added protection and natural appearance.
- Disinfecting the crown to ensure it is safe for use.
- Fitting the temporary dental crown onto the patient’s tooth.
- Temporarily cementing the crown onto the tooth until a permanent crown can be made and installed.
Parameters
-
Content Data value Testing method Viscosity 350-420cps(25℃) ASTM D1084-1997 Density 1.25 ASM D1875-69(1980) Shrinkage ＜0.5% Capillary method Hardness85 85D ASTM D2240-05(2010) Water absorption 0.50% ASTM D570 Bending strength 55MPa ASTM D1781 Flexural modulus 1600MPa ASTM D747 Biocompatibility TEST PASS ISO10993-1/ISO
-
Content Data value Testing method Viscosity 350-420cps(25℃) ASTM D1084-1997 Density 1.25 ASM D1875-69(1980) Shrinkage ＜0.5% Capillary method Hardness85 85D ASTM D2240-05(2010) Water absorption 0.50% ASTM D570 Bending strength 55MPa ASTM D1781 Flexural modulus 1600MPa ASTM D747 Biocompatibility TEST PASS ISO10993-1/ISO10993-10
-

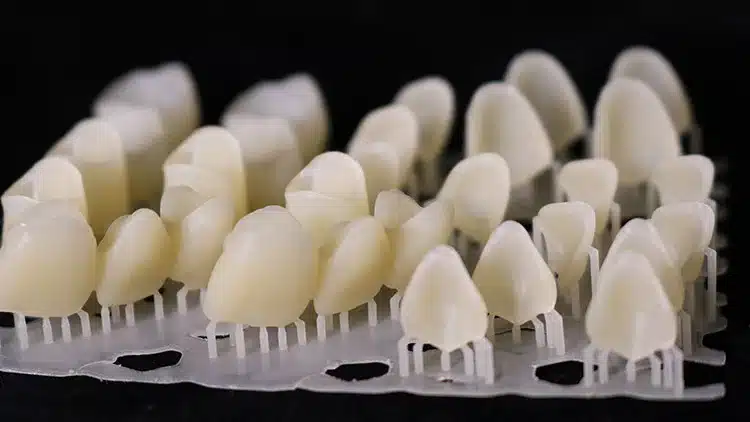

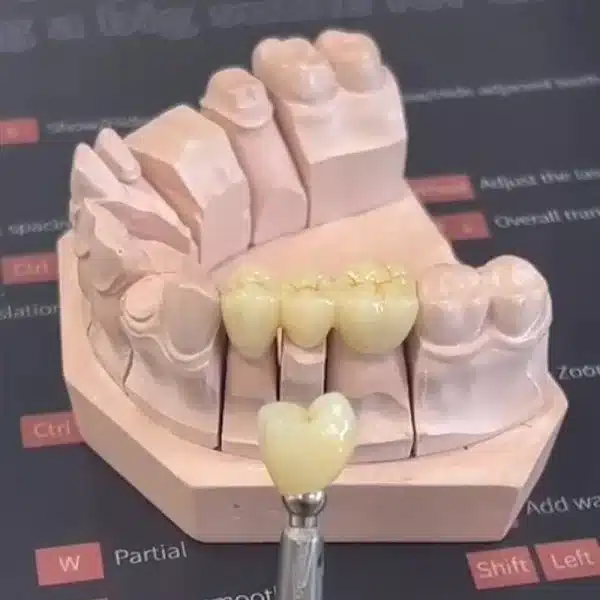

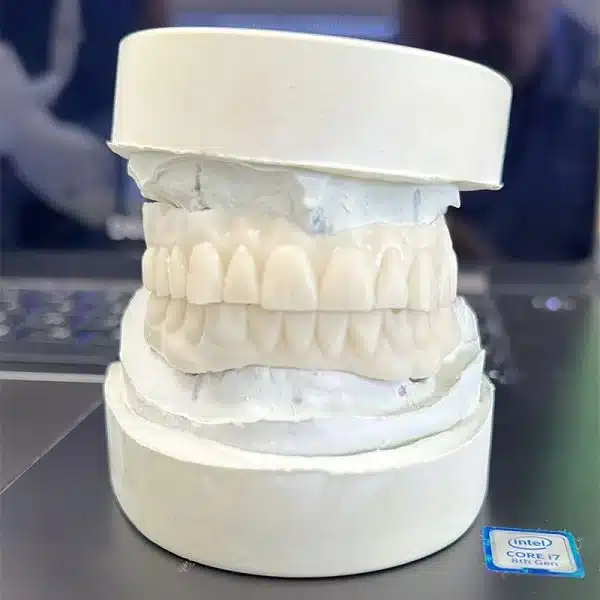

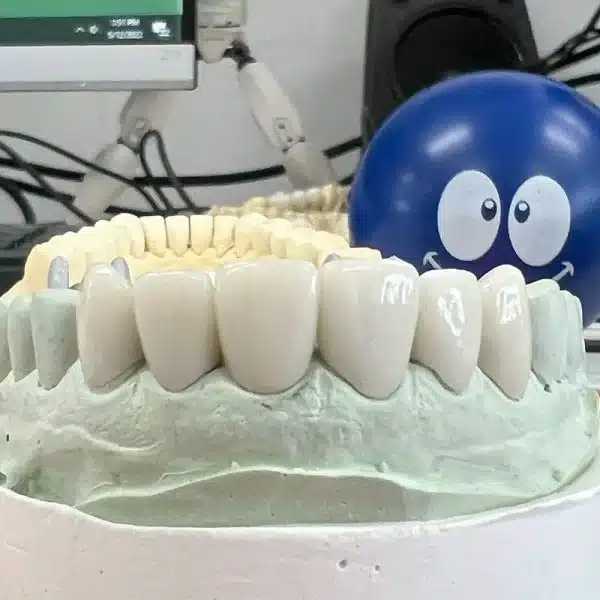

Content Data value Testing method Viscosity 350-420cps(25℃) ASTM D1084-1997 Density 1.25 ASM D1875-69(1980) Shrinkage ＜0.5% Capillary method Hardness85 85D ASTM D2240-05(2010) Water absorption 0.50% ASTM D570 Bending strength 55MPa ASTM D1781 Flexural modulus 1600MPa ASTM D747 Biocompatibility TEST PASS ISO10993-1/ISO10993-10 Temporary Crown Resin Print Samples
