Sold out

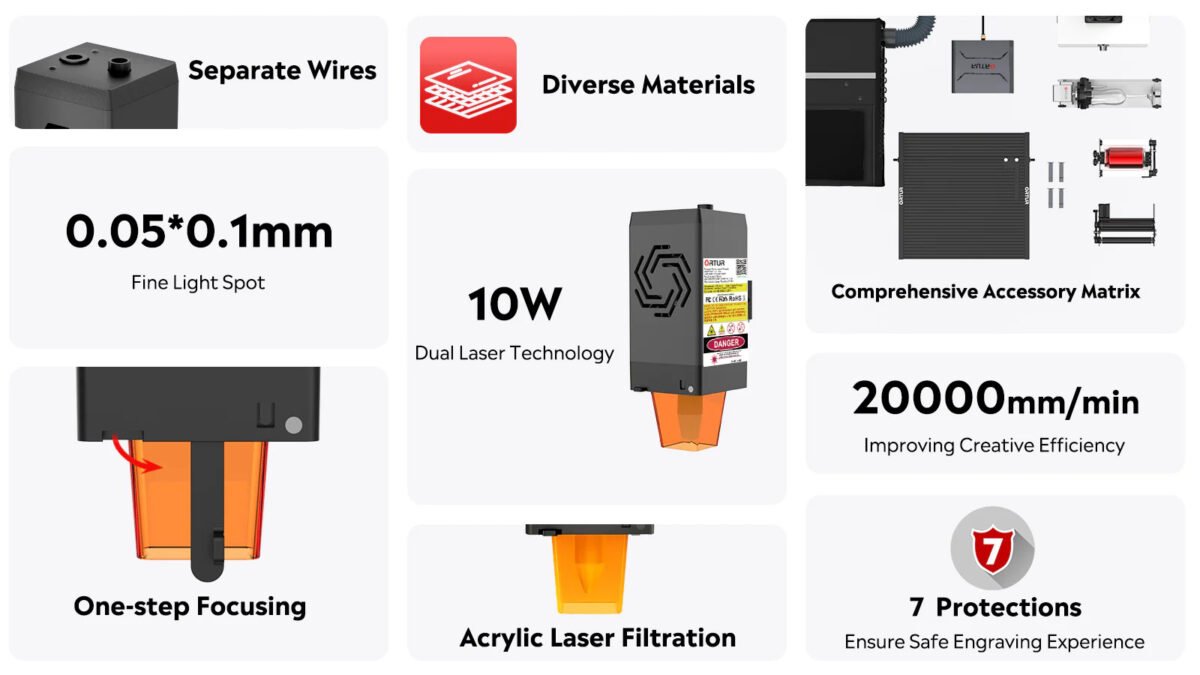

Ortur Laser Master 3 High Precision 10W Diode Laser Cutter & Engraver
Superior 20,000mm/min Ultra Speed
Accessory Compatibility
Efficient Integrated Air Assist System
Built-in air tube cooperates with the included 50L air pump to reduce burn marks by 50% , and knob to adjust airflow.
Laser Module | LU2-10A | ||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Focal Spot | 0.05*0.1mm | ||||||||||||||||||||||
Machine Power | 80W | ||||||||||||||||||||||
Laser Electric Power | 40W | ||||||||||||||||||||||
Power Input | 24V 4A | ||||||||||||||||||||||
Maximum Luminous Power | 10W | ||||||||||||||||||||||
Laser Technology | Optical Compression | ||||||||||||||||||||||
Working Area | 400*400 mm (15.75*15.75 inches) |
||||||||||||||||||||||
Extended Area | 400*850mm(15.75*33.46 inches) | ||||||||||||||||||||||
Exhaust Nozzle | √ | ||||||||||||||||||||||
Z-Height Adjuster Adaptability | √ | ||||||||||||||||||||||
Focal Length | 50mm | ||||||||||||||||||||||
Focusing Mode | Manual | ||||||||||||||||||||||
Wavelength | 450±5nm | ||||||||||||||||||||||
Lifetime | >10,000H | ||||||||||||||||||||||
Maximum Speed | 20,000mm/min | ||||||||||||||||||||||
Cleaning Frequency | Every 50 hours | ||||||||||||||||||||||
Supported Functions | WIFI/APP/USB/SD Card | ||||||||||||||||||||||
Cleaning Method | Cotton wetted with alcohol and wipe off the dust and dirt on the surface of the lens, wait for the alcohol to evaporate | ||||||||||||||||||||||
Security Function | Emergency Button、Safety Lock、 Program Operation Watchdog、 Exposure Time Limit、USB Connection Monitor、Tilt Motion Detection、Voltage & Current Safety Control System |
