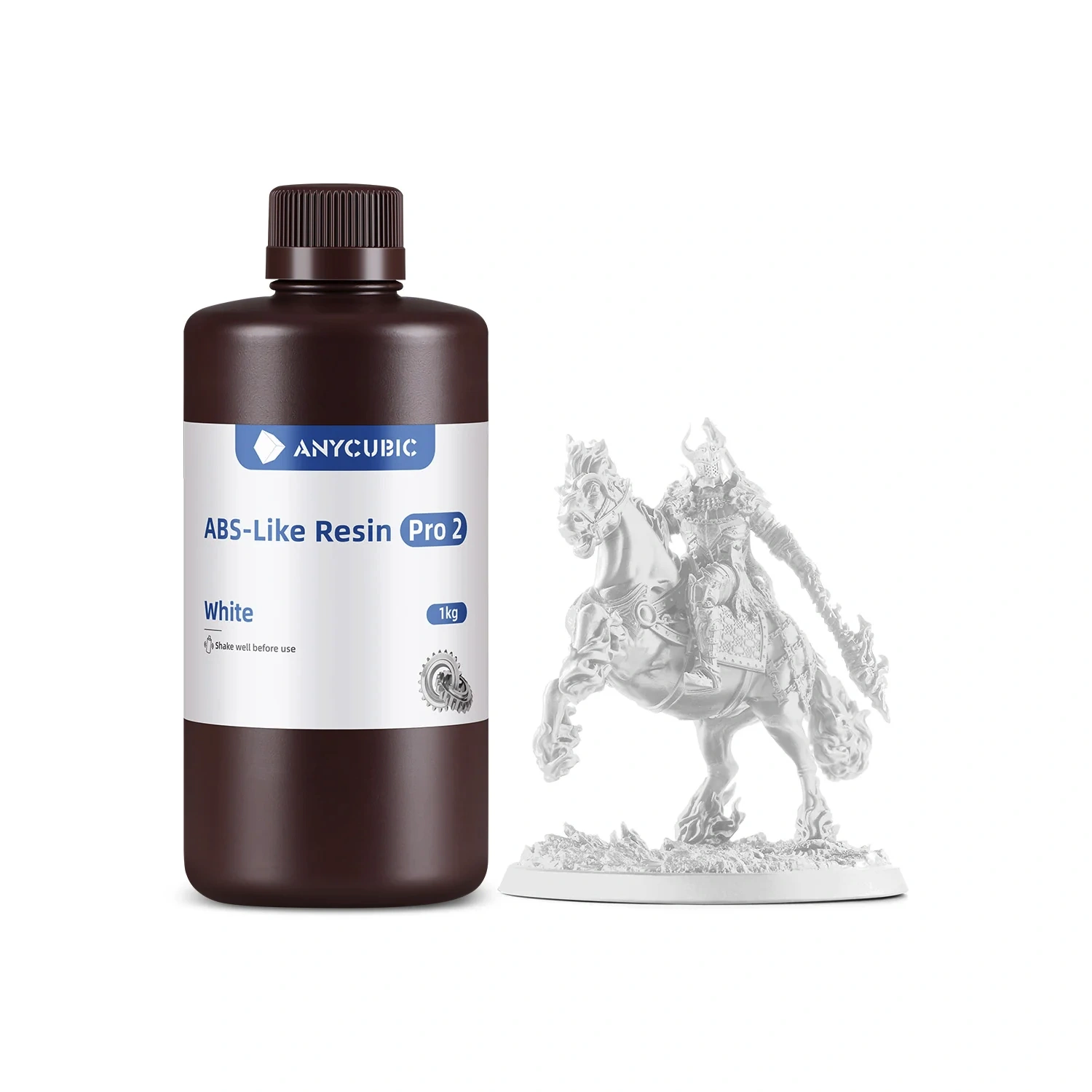

Anycubic ABS-Like Resin Pro 2
High-Toughness Engineering Resin for Functional 3D Printing
Anycubic ABS-Like Resin Pro 2 is a premium engineering-grade photopolymer resin developed for makers, engineers, designers, and professionals who require a balance of strength, durability, precision, and printing reliability. Designed to overcome the brittleness commonly associated with standard resin materials, ABS-Like Resin Pro 2 delivers enhanced toughness and resilience while maintaining excellent detail reproduction and surface quality.
This advanced resin is ideal for industrial prototypes, mechanical components, functional assemblies, engineering models, jigs, fixtures, snap-fit parts, enclosures, and display models where both strength and dimensional accuracy are critical.
Enhanced Toughness and Impact Resistance
Engineered with improved mechanical properties, Anycubic ABS-Like Resin Pro 2 provides the durability required for demanding applications. With a tensile strength of 35–45 MPa and an elongation at break of 35–40%, printed parts can withstand greater stress and deformation compared to conventional rigid resins.
The material’s hardness of 82–84 Shore D ensures excellent rigidity while maintaining enough flexibility to reduce brittleness. Combined with an Izod impact strength of 212 J/m, the resin produces durable parts capable of handling daily use, assembly operations, and post-processing without easily cracking or breaking.
The low volume shrinkage rate of 4.3–5.6% helps preserve dimensional accuracy, ensuring that printed parts remain true to their original design specifications.
Mechanical Performance
| Property | Value |
|---|---|
| Hardness | 82–84 HD |
| Tensile Strength | 35–45 MPa |
| Elongation at Break | 35–40% |
| Izod Impact Strength | 212 J/m |
| Bending Modulus | 40–45 MPa |
| Bending Strength | 1400–1800 MPa |
| Young’s Modulus | 1600–1800 MPa |
| Volume Shrinkage Rate | 4.3–5.6% |
High-Flow Formula for Faster and More Reliable Printing
ABS-Like Resin Pro 2 features a low-viscosity formulation specifically designed to improve printing efficiency and consistency. With a viscosity of only 300–400 mPa·s at 25°C, the resin flows quickly and evenly, reducing layer recovery times and enabling smoother print operations.
Its excellent flowability minimizes trapped air bubbles and promotes superior surface quality, while rapid bubble dissipation helps reproduce fine details and sharp edges with exceptional clarity.
Superior build plate adhesion enhances print stability and significantly reduces the likelihood of print failures during long printing sessions.
Physical Properties
| Property | Value |
|---|---|
| Material Type | Photopolymer Resin |
| Density | 1.05–1.25 g/cm³ |
| Viscosity (25°C) | 300–400 mPa·s |
| UV Wavelength | 365–405 nm |
Low-Odor Printing Experience
Developed with user comfort in mind, Anycubic ABS-Like Resin Pro 2 utilizes a low-odor formulation that reduces unpleasant resin smells during operation. This creates a more comfortable and enjoyable printing environment while maintaining the high-performance characteristics required for professional applications.
Although the odor is significantly reduced, proper ventilation and standard resin handling procedures are still recommended for safe operation.
Exceptional Detail Reproduction
The combination of low viscosity, rapid bubble release, and controlled curing behavior enables ABS-Like Resin Pro 2 to reproduce intricate details with excellent accuracy.
Fine textures, sharp corners, engraved features, and complex geometries are faithfully captured, making this resin suitable for both highly detailed display models and mechanically functional components.
Key benefits include:
- Enhanced toughness and durability
- Excellent dimensional accuracy
- Reduced brittleness
- High impact resistance
- Smooth surface finish
- Sharp detail reproduction
- Reliable build plate adhesion
- Improved print success rate
- Low-odor formulation
- Wide printer compatibility
Broad Compatibility with 405nm Resin Printers
Anycubic ABS-Like Resin Pro 2 is compatible with virtually all LCD and DLP 3D printers utilizing 365–405 nm UV light sources. It performs exceptionally well with Anycubic Photon-series printers while remaining fully compatible with most third-party resin printing systems.
Recommended Printing Conditions
| Parameter | Value |
|---|---|
| Printing Environment | 20–40°C |
| Printing Temperature | 20–50°C |
| First Layer Exposure | 20–40 Seconds |
| Normal Layer Exposure | 1.5–3 Seconds |
| Recommended Layer Height | 0.05 mm |
| UV Wavelength | 365–405 nm |
Post-Processing Specifications
For optimal mechanical performance and appearance, Anycubic recommends washing and curing printed parts according to the following guidelines:
| Parameter | Value |
|---|---|
| Cleaning Solution | ≥95% IPA |
| Washing Duration | ≥3 Minutes |
| Post-Cure UV Wavelength | 405 nm |
| Cure Temperature | 18–30°C |
| UV Intensity | 25,000–30,000 μW/cm² |
| Recommended Cure Time | Approximately 3 Minutes |
Technical Specifications Summary
| Category | Specification |
|---|---|
| Material | Photopolymer Resin |
| UV Wavelength | 365–405 nm |
| Density | 1.05–1.25 g/cm³ |
| Viscosity | 300–400 mPa·s (25°C) |
| Hardness | 82–84 HD |
| Tensile Strength | 35–45 MPa |
| Elongation at Break | 35–40% |
| Izod Impact Strength | 212 J/m |
| Young’s Modulus | 1600–1800 MPa |
| Bending Strength | 1400–1800 MPa |
| Bending Modulus | 40–45 MPa |
| Volume Shrinkage | 4.3–5.6% |
| Print Environment | 20–40°C |
| Cleaning Method | ≥95% IPA |
| Cure Time | Approximately 3 Minutes |
Anycubic ABS-Like Resin Pro 2 combines strength, resilience, dimensional accuracy, and ease of printing into a versatile engineering resin suitable for both professional and hobbyist applications. Whether creating functional prototypes, industrial components, or highly detailed display models, this resin delivers dependable performance and exceptional print quality.
