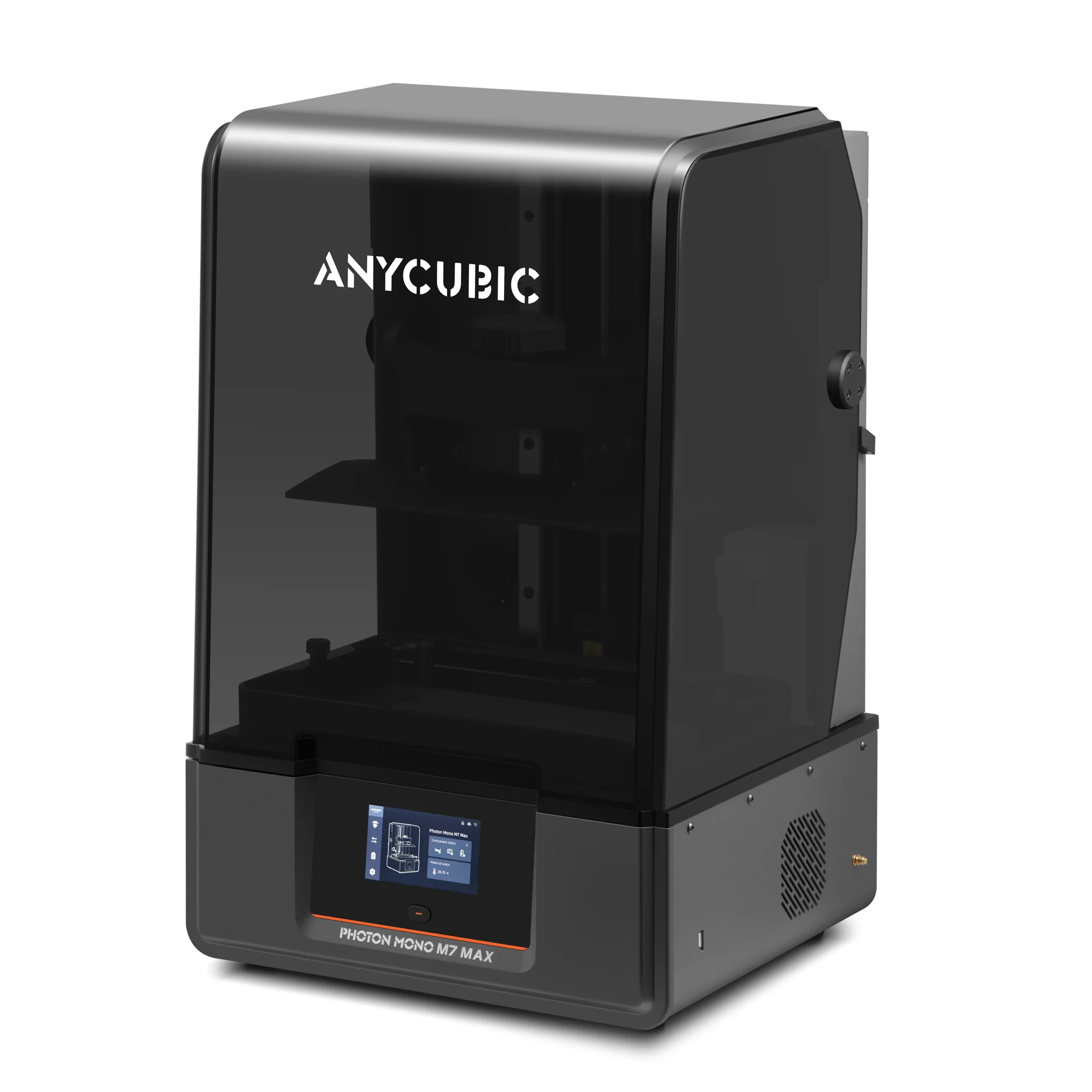

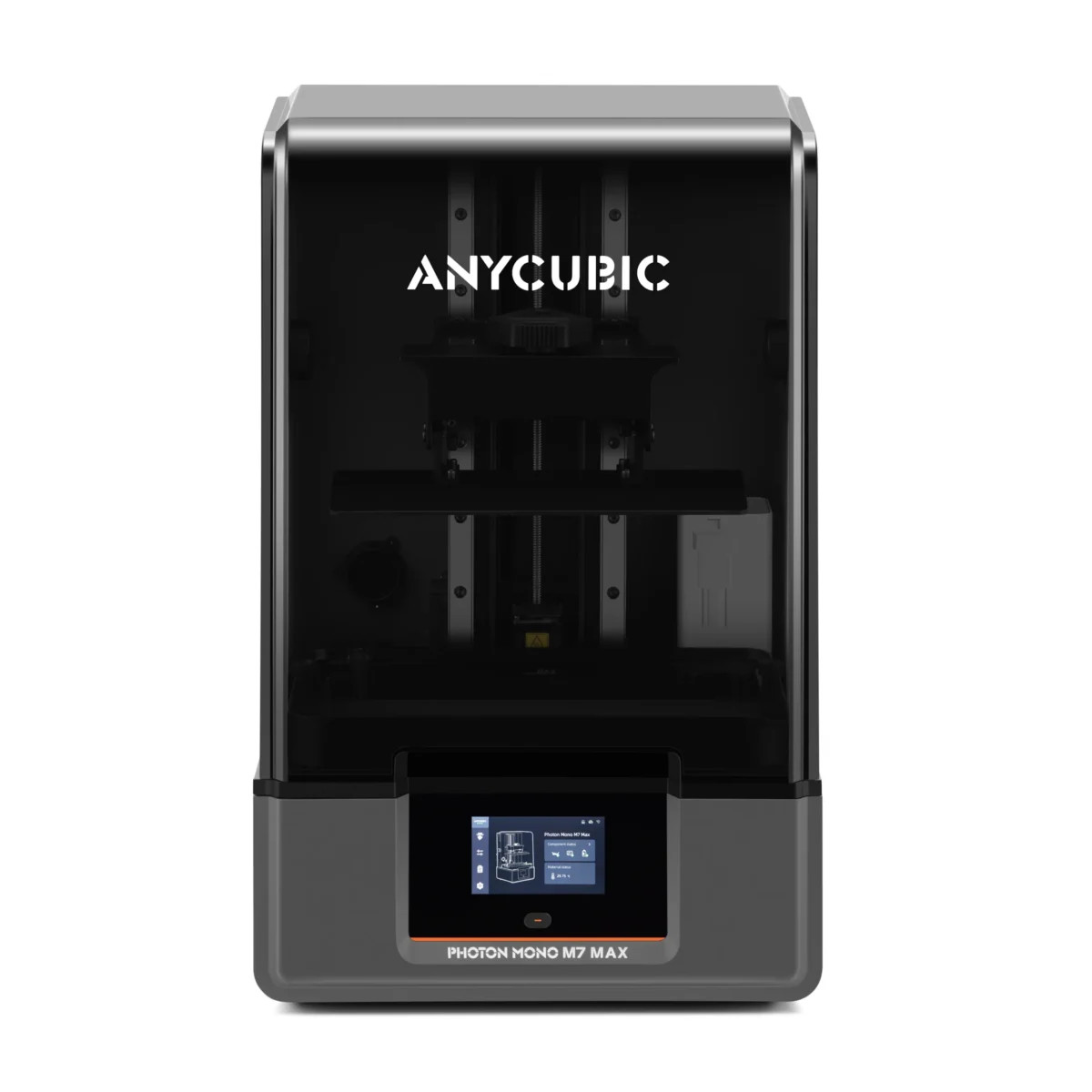

Anycubic Photon Mono M7 Max 3D Printer – Product Description
Unleash Precision with Ultra-High Resolution Printing
Step into a new dimension of detail with the Anycubic Photon Mono M7 Max. This cutting-edge 3D printer boasts an 14K monochrome LCD screen, delivering razor-sharp accuracy for your most intricate designs. Whether you’re crafting miniatures, prototypes, or artistic models, the exceptional 14K resolution ensures that every layer is printed with flawless precision. Say goodbye to pixelation and hello to unparalleled smoothness in your prints. Elevate your creativity with a printer that turns your vision into reality, down to the finest detail.
Faster Printing, Bigger Builds – Maximize Your Workflow
Designed for efficiency and scalability, the Photon Mono M7 Max features an expanded build volume, allowing you to print larger models or multiple parts in a single batch. Thanks to high-speed printing technology and an optimized light source, you can create stunning, detailed prints in record time. Whether you’re a professional designer or a passionate hobbyist, this high-speed resin 3D printer accelerates your workflow without compromising quality. Get more done, faster, with a machine built for ambitious makers.
Smart Features, Seamless Experience
The Photon Mono M7 Max isn’t just powerful—it’s smart. With an auto-leveling system, an intuitive touchscreen interface, and Wi-Fi connectivity, printing has never been easier. Upload your designs wirelessly, fine-tune your settings with precision, and enjoy a hassle-free printing experience every time. Plus, the anti-scratch screen protector and upgraded cooling system extend the printer’s lifespan, ensuring reliable performance for years to come. Bring your ideas to life with confidence, knowing this advanced 3D printer has your back.
Specifications
| Feature | Details |
|---|---|
| Build Volume | 298mm × 164mm × 300mm |
| Printing Volume | 14.7L |
| Operating Screen | 4.3″ Touch-Control |
| LCD Screen Size | 13.6″, 7K |
| Antenna Port | Yes |

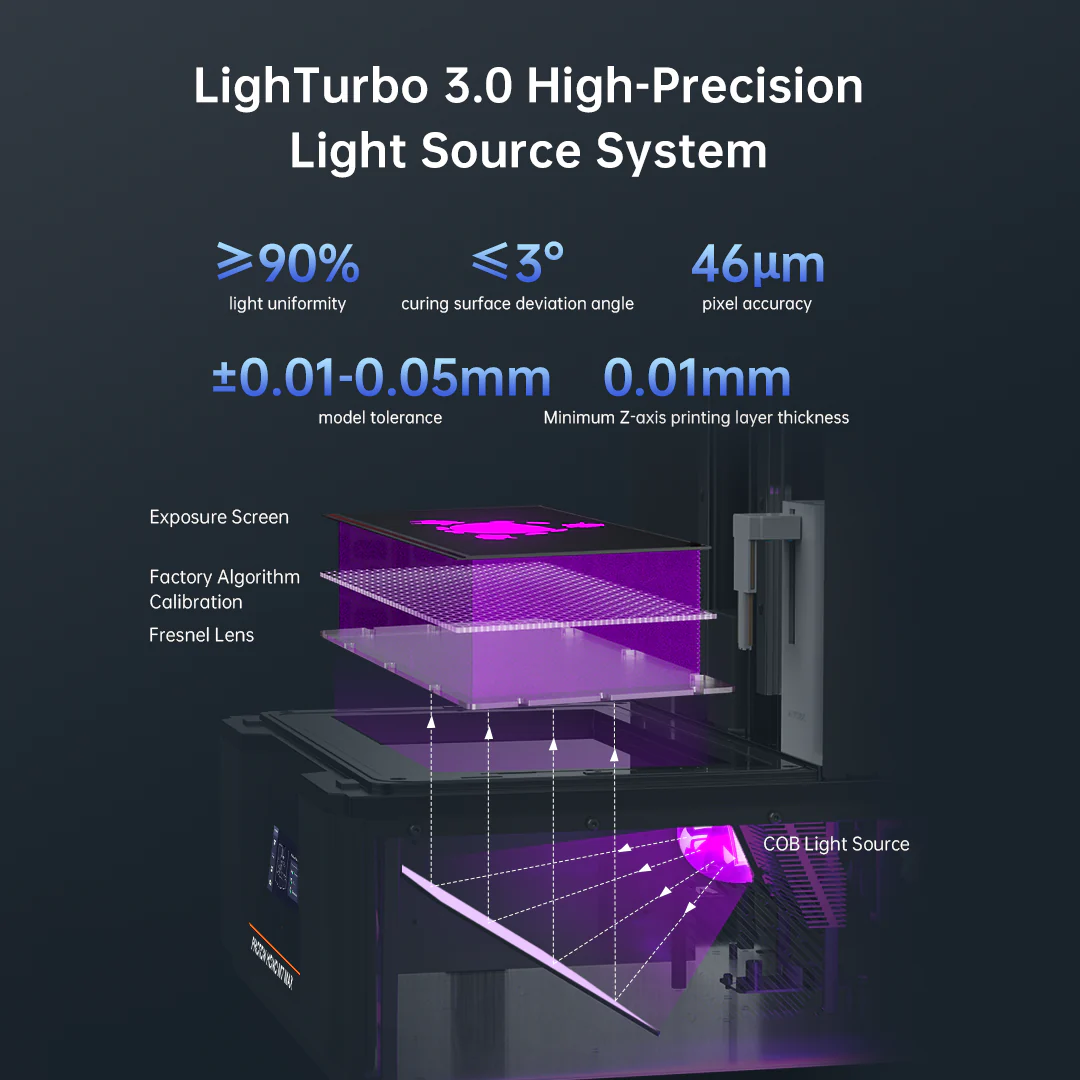

| Light Source | COB light source + front-facing reflectors + Fresnel Lens |
| Light Intensity | 4500±500 µw/cm² |
| Machine Leveling | 4-point manual leveling |
| XY Resolution | 46 × 46µm |
| Z Axis | Double liners with 10µm accuracy |
| File Transfer | USB & WiFi. LAN (Can be supported around Q4 2024) |
| Release Film | ACF Film |
| Power Supply | 180W rated power |
| Weight | Machine Weight: 24kg / 52.91 lbs, Package Weight: 28.5kg / 62.83 lbs |
| Size | Machine Dimensions: 425 × 362 × 652mm, Package Dimensions: 785 × 520 × 490mm |
| Printing Speed | Max Speed ≤31mm/h, 0.05mm Layer With Standard Resin; Max Speed ≤63mm/h, 0.1mm Layer With Standard Resin; Max Speed ≤86mm/h, 0.1mm Layer With High-Speed Resin |
| Support Language | English, Chinese, German, French, Italian, Spanish, Russian, Japanese |
| Resin Vat | 1.3L Unibody design with scale lines |
| Protection Film | Replaceable anti-scratch film |
| Anycubic App | Support |
| Hinged Cover | Effectively blocks UV radiation, Supports one-hand opening and hovering angles anywhere greater than 45° |
| Material | Compatible with kinds of resin (high speed, water-washable, standard, ABS-like, plant-based, etc.) |
| Air Purifier | USB |
What's In Box
-
- Photon Mono M7 Max
-
- Print Platform * 1
-

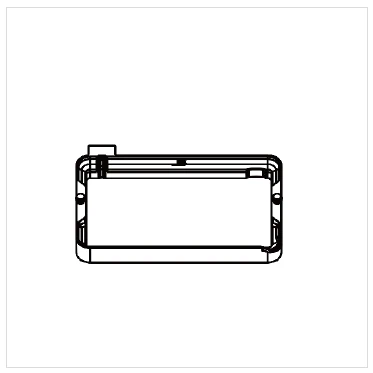

- Resin Vat * 1
-
- Scrapers * 2
-
- Hex Key Set
-
- Leveling Paper
-

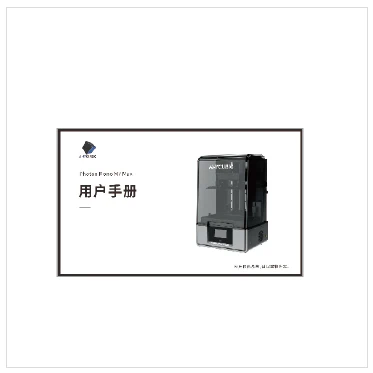

- Manual * 1
-
- Cap part of auto-fill unit
-
- Protective Equipment
-
- Filter
-

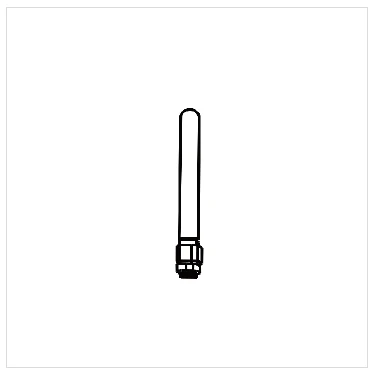

- Antenna
-
- USB Drive * 1
-
- Power Cord
-
