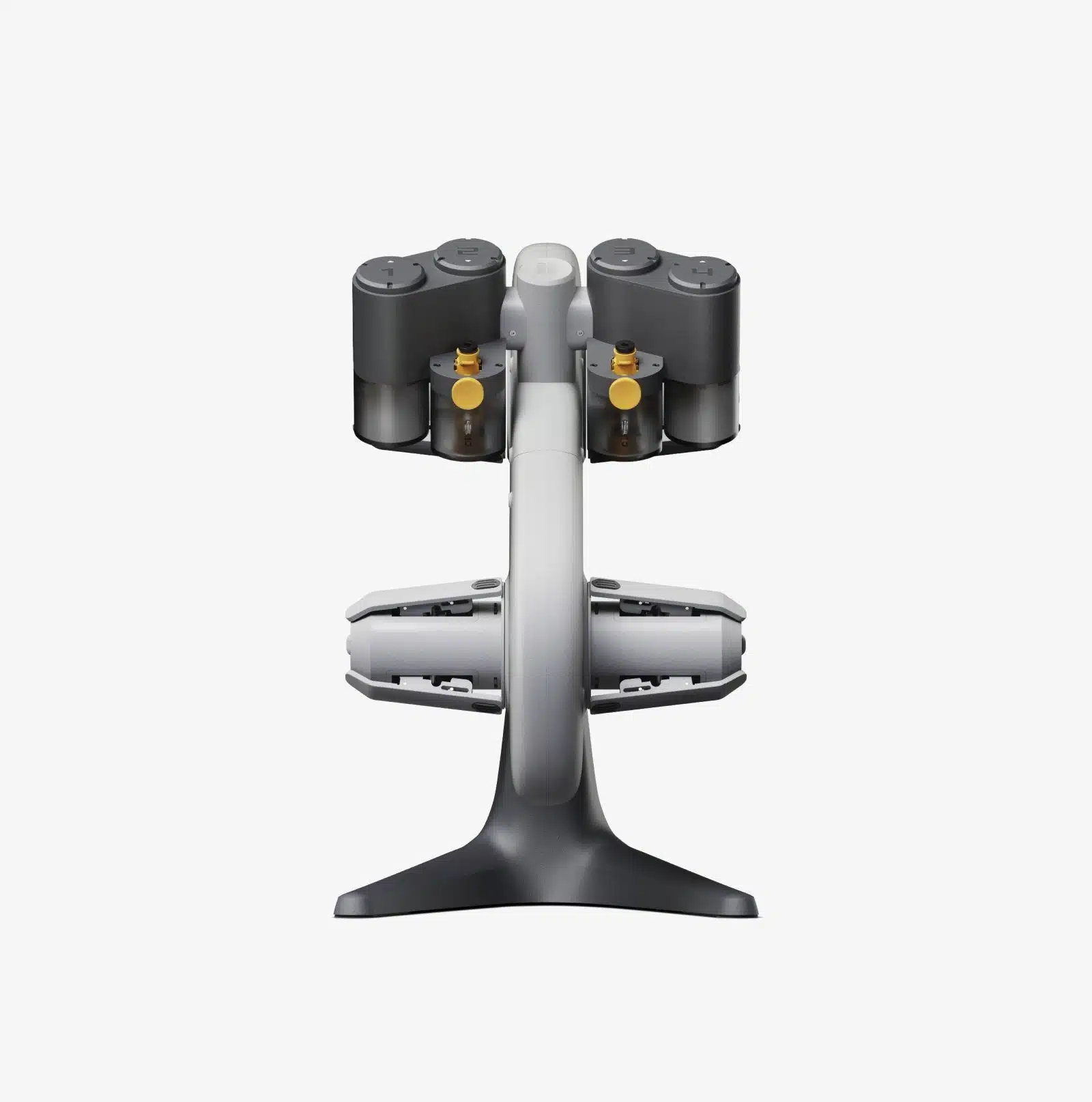

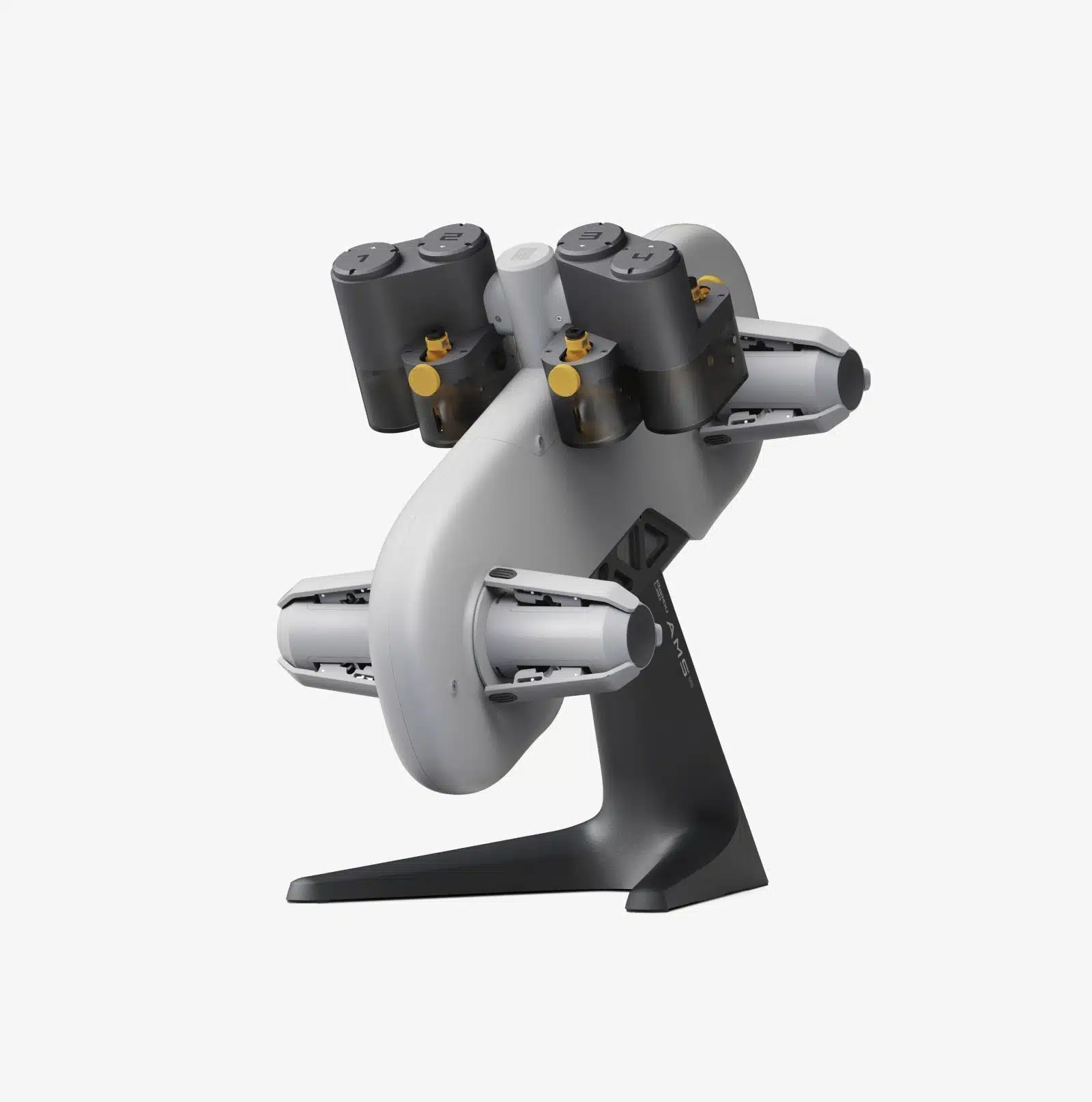

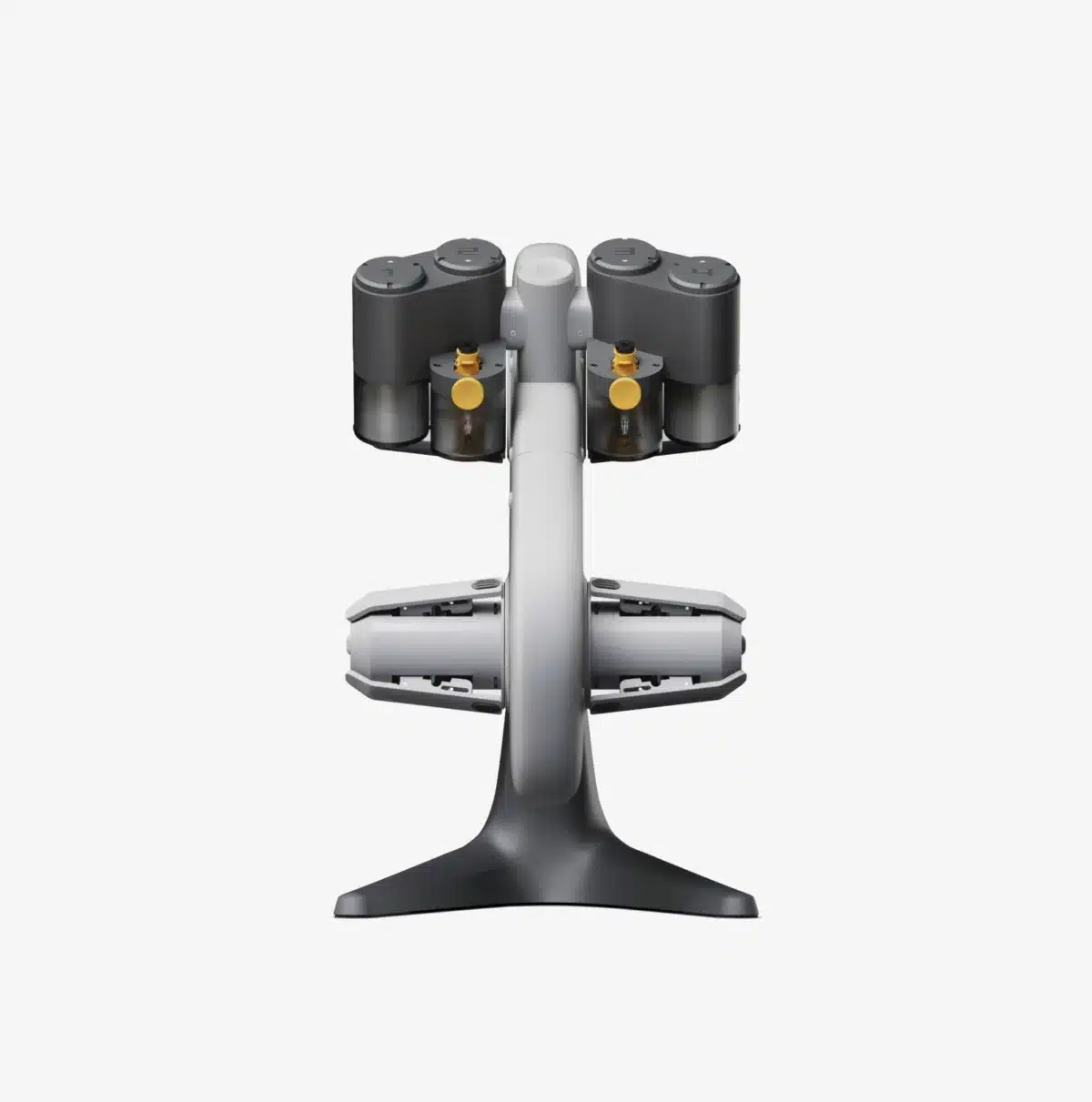

Bambu Lab AMS lite

The Bambu Lab AMS Lite Automatic Material System is a compact, intelligent multi-material management unit designed to enhance desktop 3D printing workflows. Built specifically for seamless integration with the A1 Series printers, AMS Lite enables reliable multi-color and multi-material printing while maintaining high efficiency and minimal user intervention.

Core Functionality & Engineering Design

The AMS Lite introduces automated filament handling with a focus on reliability, compatibility, and ease of maintenance. Its architecture supports up to 4 filament spools simultaneously, allowing dynamic switching between materials or colors during print jobs.

Key engineering highlights include:

• Multi-Color / Multi-Material Printing
  Enables complex prints using multiple filaments in a single job without manual swapping.
• Automatic Filament Backup System
  Detects filament depletion and seamlessly switches to a backup spool, preventing print failures and minimizing material waste.
• RFID Filament Synchronization
  Integrated RFID reader automatically identifies compatible filaments and applies optimized print parameters via Bambu Studio.

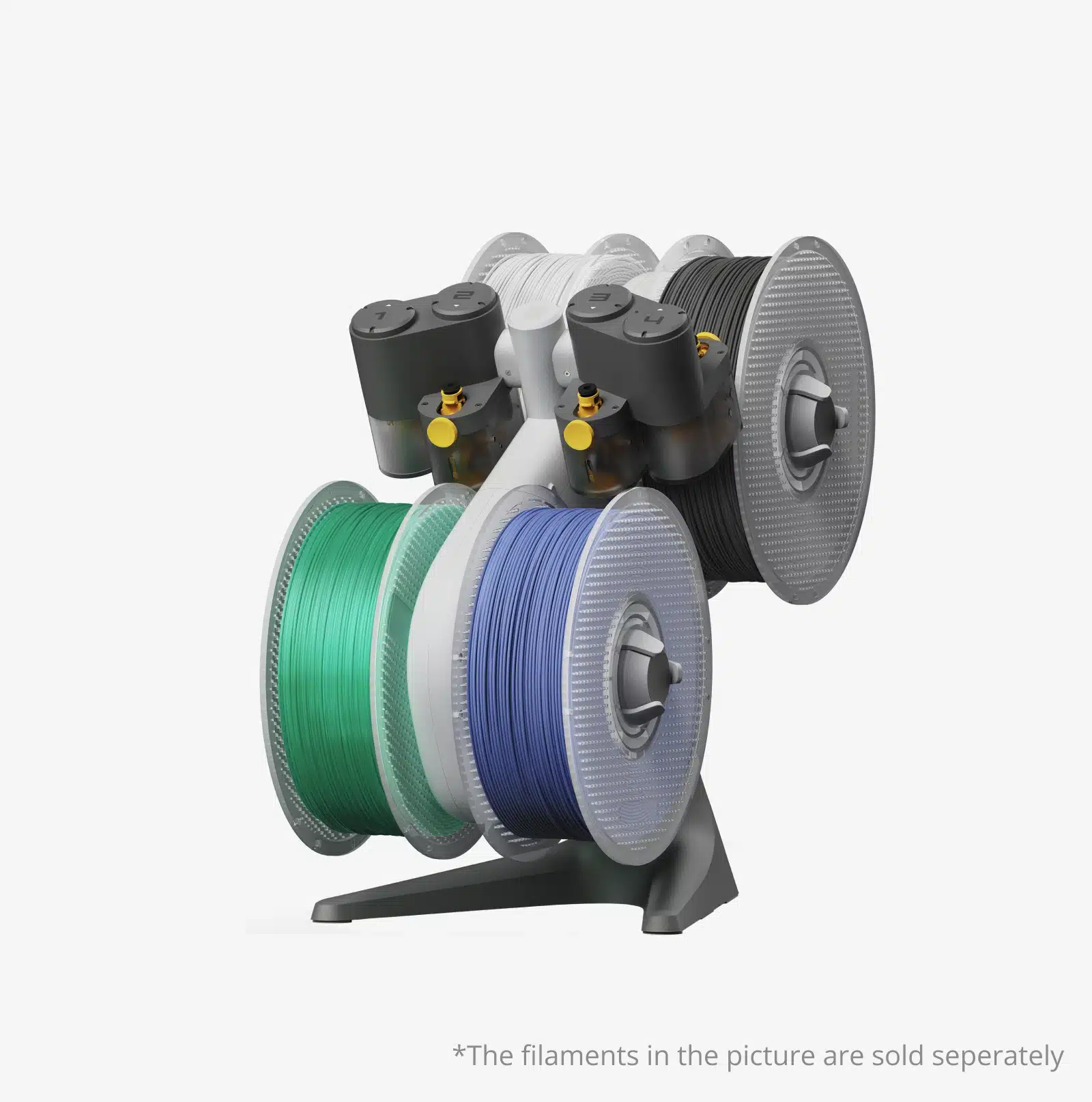

• Spring-Loaded Rotary Spool Holders
  Designed to improve compatibility with various spool types, including cardboard (paper) spools.
• Open & Accessible Structure
  Transparent and modular design allows real-time monitoring and simplifies troubleshooting and maintenance.

Material Compatibility

The AMS Lite supports a wide range of 1.75 mm filaments, making it suitable for diverse applications:

Supported Materials:

• PLA, PETG, ASA, PET
• PA (Nylon), PC (Polycarbonate)
• PVA (dry), BVOH (dry)
• PP, POM, HIPS
• Carbon fiber variant: Bambu PLA-CF

Not Recommended:

• Glow-in-the-dark filaments
• PETG-CF and abrasive composites

Unsupported:

• TPU, TPE (flexible materials)
• Wet PVA/BVOH
• Carbon fiber or glass fiber reinforced filaments (non-compatible types)

These constraints ensure consistent feeding performance and prevent excessive wear on internal components.

Physical Specifications

• Dimensions: 397 × 208 × 342 mm
• Weight: 1.6 kg
• Construction Materials: ABS, PC, POM
• Supported Spool Size:
  • Width: 40–68 mm
  • Inner Diameter: 53–58 mm

Its compact footprint makes it suitable for desktop environments while maintaining industrial-grade functionality.

System Integration & Workflow

AMS Lite integrates directly with Bambu Lab’s ecosystem:

• Bambu Studio Synchronization
  Automatic filament detection via RFID enables instant parameter configuration.
• Support Material Optimization
  Allows use of dissolvable or snap-away support materials, significantly simplifying post-processing.
• Single AMS Limitation
  A1 Series printers support only one AMS Lite unit, limiting the system to 4-color printing maximum.

Maintenance & Reliability

The system is engineered for minimal downtime:

• Tool-less access for quick servicing
• Visible internal structure for diagnostics
• Reduced risk of filament jams through optimized feeding paths
