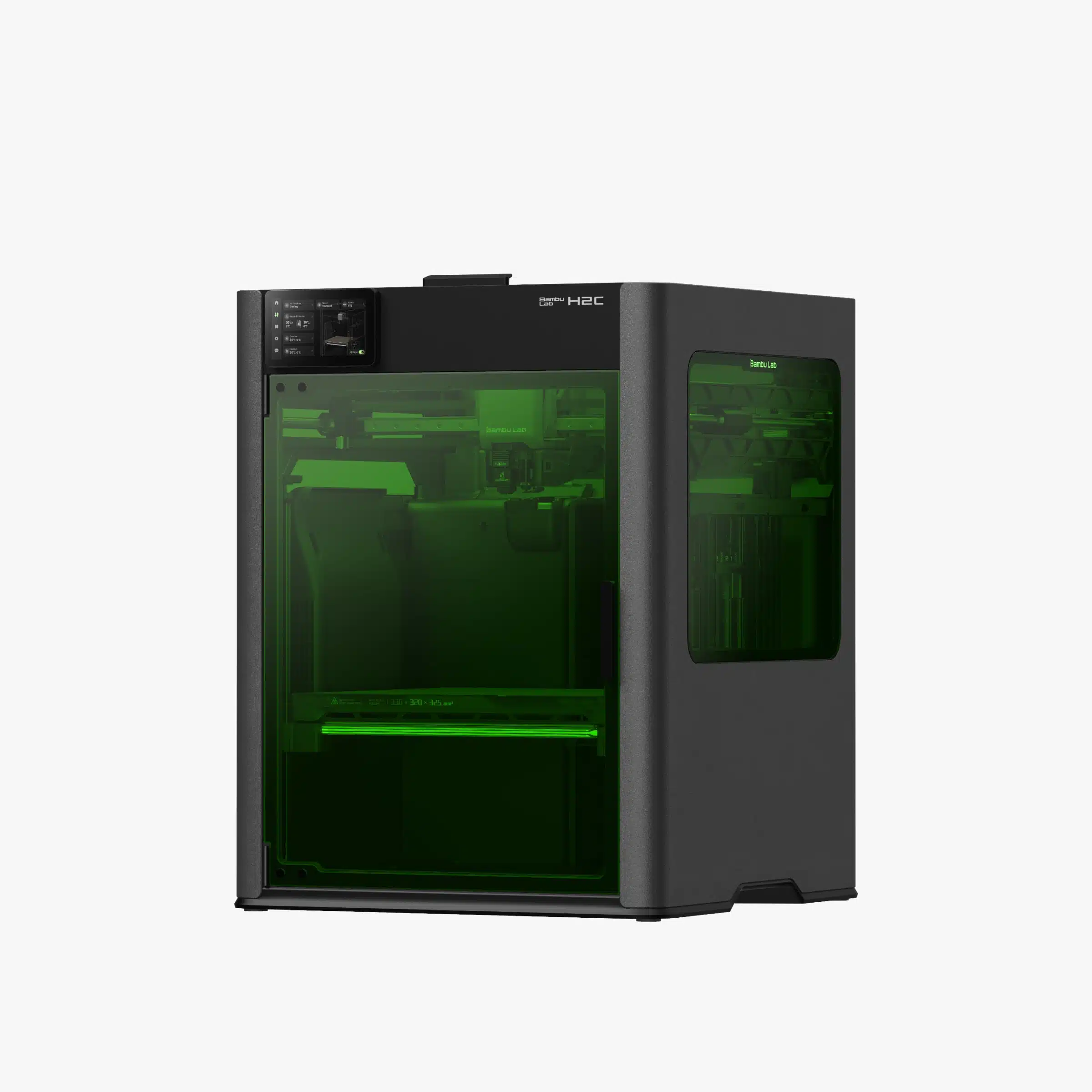

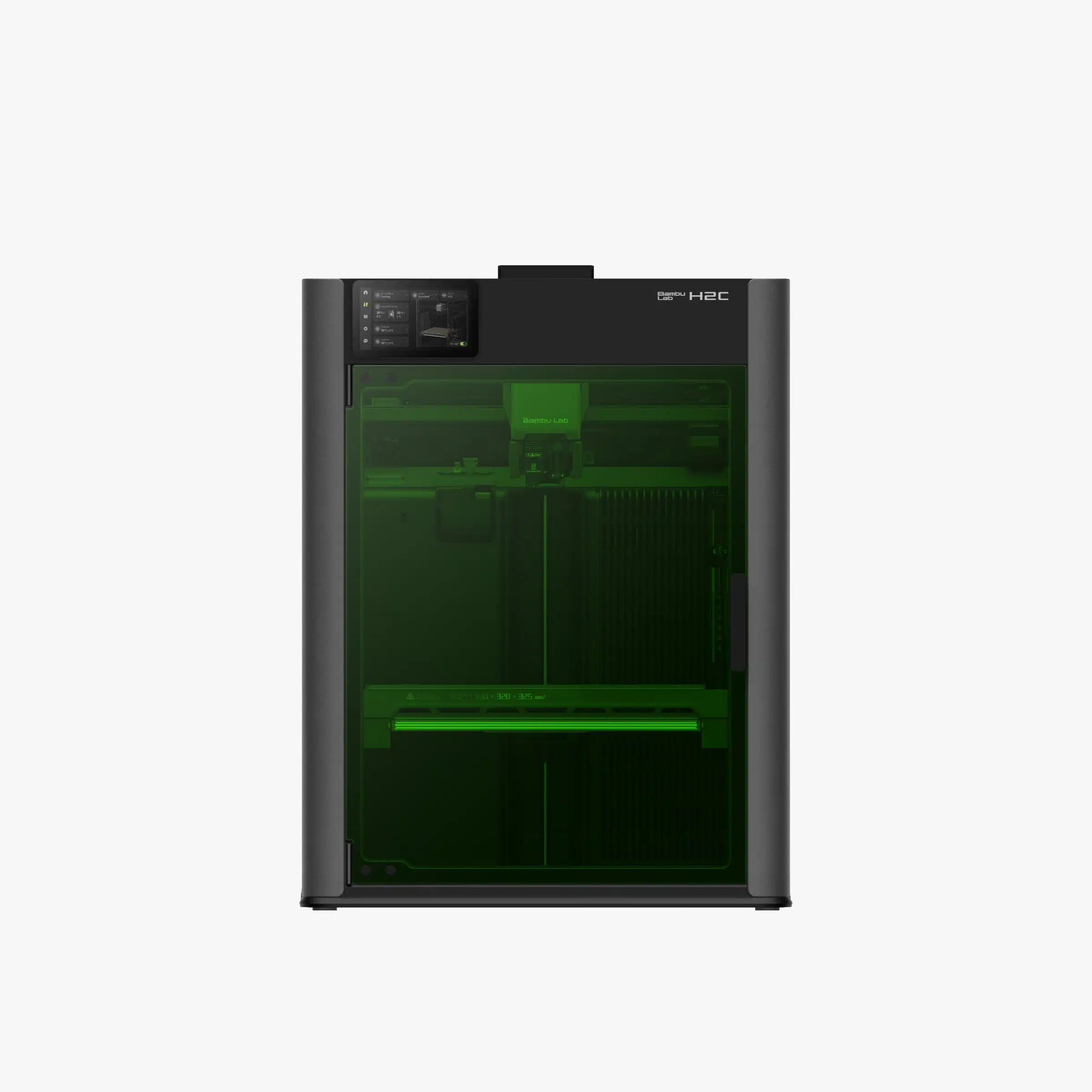

Bambu Lab H2C Laser

The Bambu Lab H2C Laser is a high-performance hybrid fabrication system designed to combine advanced FDM 3D printing with integrated laser engraving and cutting capabilities. Engineered for precision, speed, and versatility, the H2C Laser enables users to produce complex parts, engravings, and cut materials within a single, unified workflow.

Hybrid Manufacturing: 3D Printing + Laser Processing

The H2C Laser extends beyond traditional 3D printing by incorporating laser and cutting modules, making it suitable for both additive and subtractive manufacturing applications.

• Compatible with 10W and 40W laser modules
• Integrated laser engraving and cutting functionality
• Dedicated laser and cutting platforms included
• Blade cutting module with pen holder support
• Emergency stop system for operational safety

This hybrid capability allows seamless transitions between printing, engraving, and cutting without requiring separate machines.

High-Precision Extrusion & Motion System

At its core, the H2C Laser features a closed-loop PMSM servo extruder, delivering superior extrusion control and consistency.

• Up to 10 kg extrusion force for stable high-speed printing
• Motion accuracy of < 50 μm (with Vision Encoder)
• Real-time extrusion monitoring at 20 kHz sampling rate
• Automatic Pressure Advance calibration
• Eddy current sensing for precise material flow

The result is exceptional surface quality, sharp edges, and consistent dimensional accuracy.

Thermal Performance & Material Capability

Built for engineering-grade materials, the H2C Laser maintains stable thermal conditions for demanding applications.

• Maximum nozzle temperature: 350°C
• Active heated chamber: up to 65°C
• Enclosed build environment for thermal stability
• Flexible steel build plate with Textured PEI surface

Supports a wide range of materials including PLA, PETG, TPU, PA, PC, and composite filaments.

Build Volume & Mechanical Design

• Maximum build volume: 330 × 320 × 325 mm³
• Dual-nozzle and multi-hotend support
• Rigid aluminum and steel chassis
• Enclosed frame with plastic and glass panels
• Machine dimensions: 492 × 514 × 626 mm
• Net weight: 32.5 kg

Intelligent Monitoring & AI Diagnostics

The H2C Laser is equipped with an advanced monitoring system for reliability and automation.

• Up to 59 integrated sensors
• AI-powered camera system for real-time monitoring
• Detection of filament issues, clogs, and print failures
• Pre-print safety checks and anomaly detection

Safety & Filtration System

Designed for safe operation in both printing and laser environments:

• Fully enclosed fire-retardant chamber (UL94 V-0 rated)
• Triple-stage air filtration system:
  • G3 pre-filter
  • H12 HEPA filter
  • Activated carbon filter
• Optimized for handling fumes from engineering materials and laser operations

Connectivity & Control

• Cloud-based remote monitoring and control
• Full offline operation mode for secure environments
• MQTT support in Developer Mode
• Cybersecurity compliance with EU standards

Toolhead & Hardware Specifications

• Supported nozzle sizes: 0.2 / 0.4 / 0.6 / 0.8 mm
• Hardened steel and induction hotends
• Filament diameter: 1.75 mm
• Built-in filament cutter
• High-precision permanent magnet synchronous motor

Included Components (Laser Configuration)

• Bambu Lab H2C Laser Edition Printer
• Laser module (10W or 40W depending on configuration)
• Cutting module with platform
• Laser platform
• Flexible build plate (Textured PEI)
• Multiple hotends (induction and standard)
• 4-in-1 PTFE adapter
• Emergency stop button
