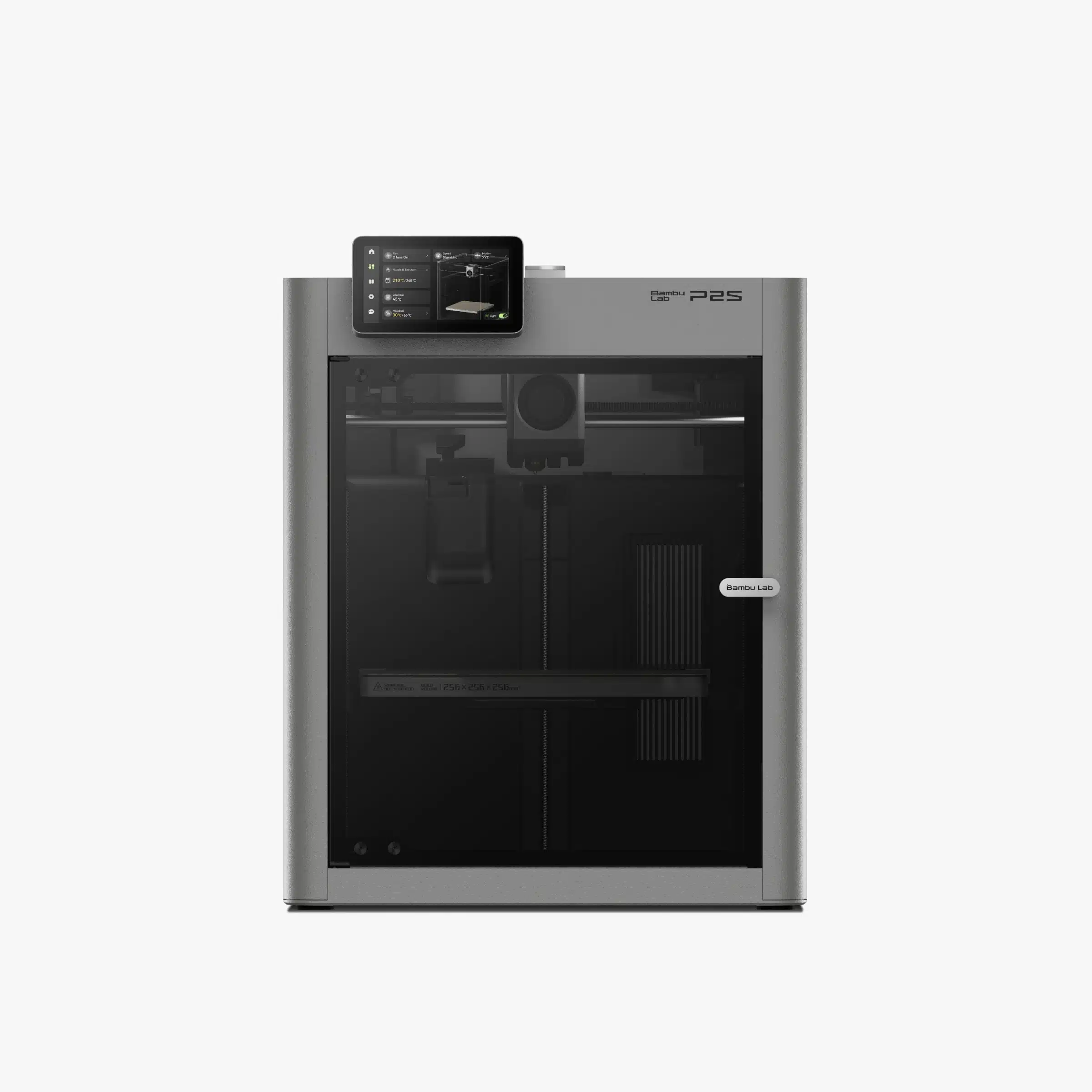

Bambu Lab P2S

The Bambu Lab P2S is a next-generation FDM 3D printer engineered for high-speed precision, intelligent automation, and reliable performance across a wide range of materials. Built on an enclosed architecture with advanced sensing, airflow management, and AI-driven monitoring, the P2S delivers consistent, high-quality prints for both prototyping and production workflows.

Core Printing Technology

• Printing Method: Fused Deposition Modeling (FDM)
• Build Volume: 256 × 256 × 256 mm
• Chassis Construction: Plastic and steel frame with glass enclosure
• Fully Enclosed Chamber: Optimized for stable temperature control and material consistency

Extrusion & Toolhead System

• Extruder Type: High-precision PMSM (Permanent Magnet Synchronous Motor)
• Maximum Extrusion Force: 8.5 kg
• Monitoring Frequency: 20 kHz real-time feedback
• Nozzle Material: Hardened steel
• Max Nozzle Temperature: 300°C
• Included Nozzle Diameter: 0.4 mm
• Supported Nozzles: 0.2 / 0.4 / 0.6 / 0.8 mm
• Quick-Swap Hotend: Tool-less one-clip nozzle replacement
• Filament Cutter: Integrated automatic cutter

Intelligent Calibration & Accuracy

• Flow Calibration: Eddy current pressure sensor for real-time adjustment
• Active Flow Compensation: Automatic tuning of extrusion consistency
• AI Error Detection: Vision-based monitoring for print failures and anomalies
• Processing Unit: Integrated NPU (2 TOPS) for on-device analysis

Cooling & Thermal Management

• Adaptive Airflow System: External cold-air intake with internal circulation control
• Chamber Capability: Up to 50°C passive chamber environment
• Air Filtration: Built-in carbon filter
• Heatbed Temperature Range: 35°C – 110°C
• Build Plate: Flexible steel plate for easy part removal

Connectivity & User Interface

• Display: 5-inch touchscreen with second-generation UI
• Camera: 1080P high-frame-rate live monitoring and timelapse
• Lighting: Integrated LED illumination system
• Connectivity: Dual-band Wi-Fi for remote operation and monitoring

Material Compatibility

• Filament Diameter: 1.75 mm
• Supported Materials: PLA, PETG, TPU, and engineering-grade filaments
• Fiber-Reinforced Filaments: Supported with hardened steel extrusion system
• Environmental Stability: Enclosed chamber improves adhesion and reduces warping

Physical Specifications

• Printer Dimensions: 392 × 406 × 478 mm
• Recommended Space: 500 × 500 × 950 mm
• Net Weight: 15.0 kg
• Gross Weight: 18.58 kg

System Features

• Fully enclosed structure for controlled printing conditions
• High-force, high-precision extrusion system
• Real-time AI-based print monitoring and error detection
• Advanced airflow and thermal regulation system
• High-resolution remote monitoring with integrated camera
• Fast maintenance with quick-swap hotend design

Compliance & Engineering

• Cybersecurity compliant with EU RED Article 3.3(d)(e)
• Conforms to ETSI EN 303 645 V2.1.1:2020 standards
