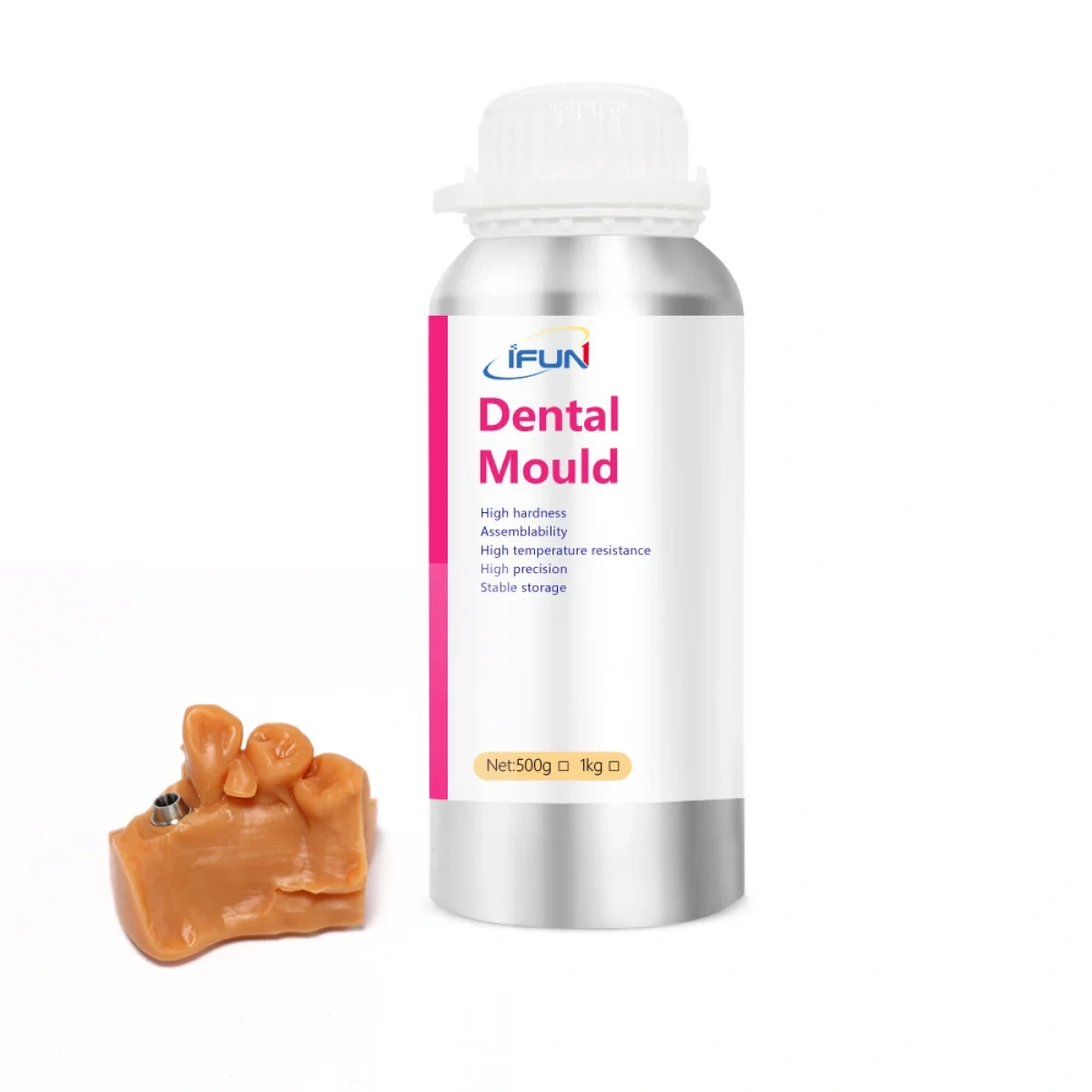

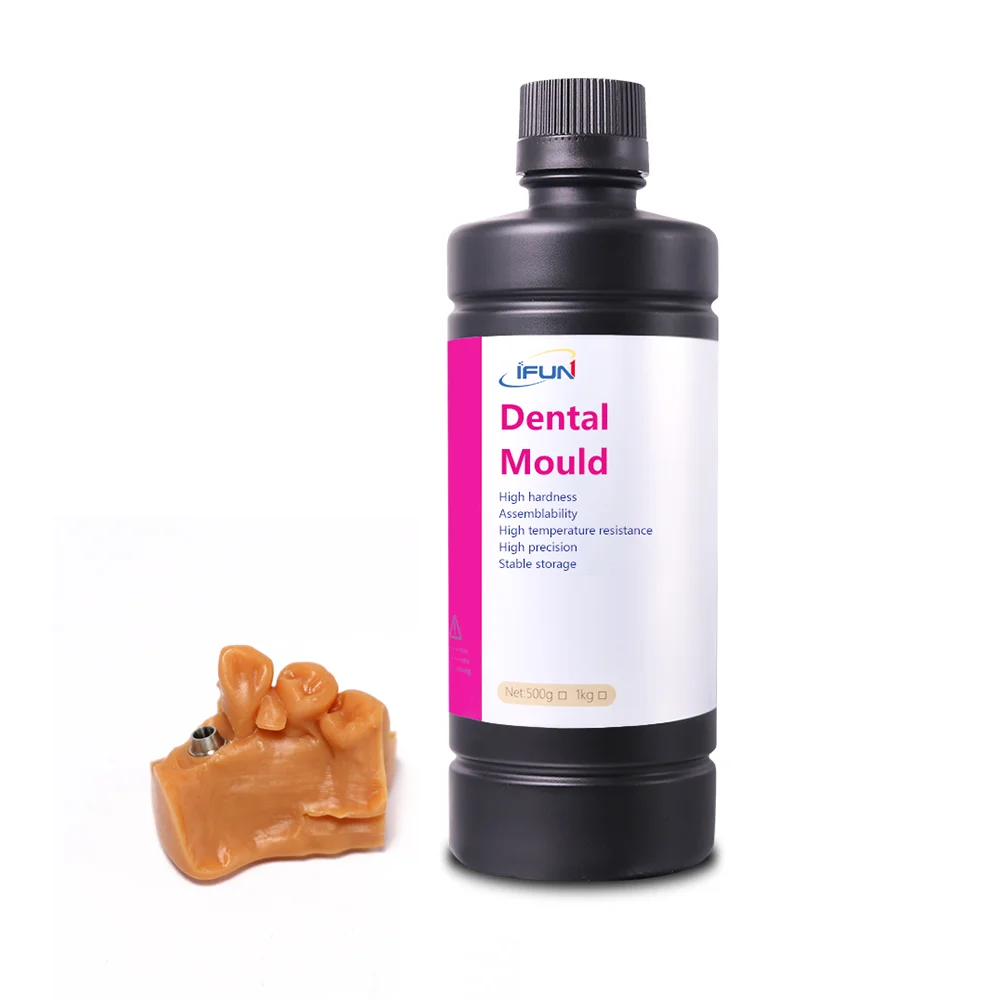

iFUN Dental Mould resin
Features of Dental mould resin(3160)
High accuracy
The iFUN Dental Mould 3160 resin printed tooth mold has a clear edge, which fully meets the requirements of dental restoration accuracy.
Suitable for orthodontic dental models
3160
iFUN Dental Mould resin has high strength and high temperature resistance; it is easy to
remove after lamination and will not stick to the model, so it can be
well used for orthodontic lamination.
Â
Suitable for dental implants
3160
resin has high molding precision. With the LCD printer, the molding
accuracy is controlled at about 35μm, which is higher than the industry
standard. 90% of the surface accuracy should be controlled within 100μm,
and the accuracy of the edges and occlusion points of the model is
within 50μm.
Â
Customized production
With
LCD 3D printer, it takes only 40 minutes to print 8 models, about 5
minutes per piece. 1KG of resin material material can print 100 pieces
of dental molds.
You can download the parameter here.
Content | Data value | Testing method |
Viscosity | 380-400cps(25℃) | ASTM D1084-1997 |
Density | 1.2 | ASM D1875-69(1980) |
Shrinkage | <0.5% | Capillary method |
Hardness | >82D | ASTM D2240-05(2010) |
Deformation temperature | 120℃ | ASTM D1929-1996 |
Bending strength | >60 MPa | ASTM D1781 |
